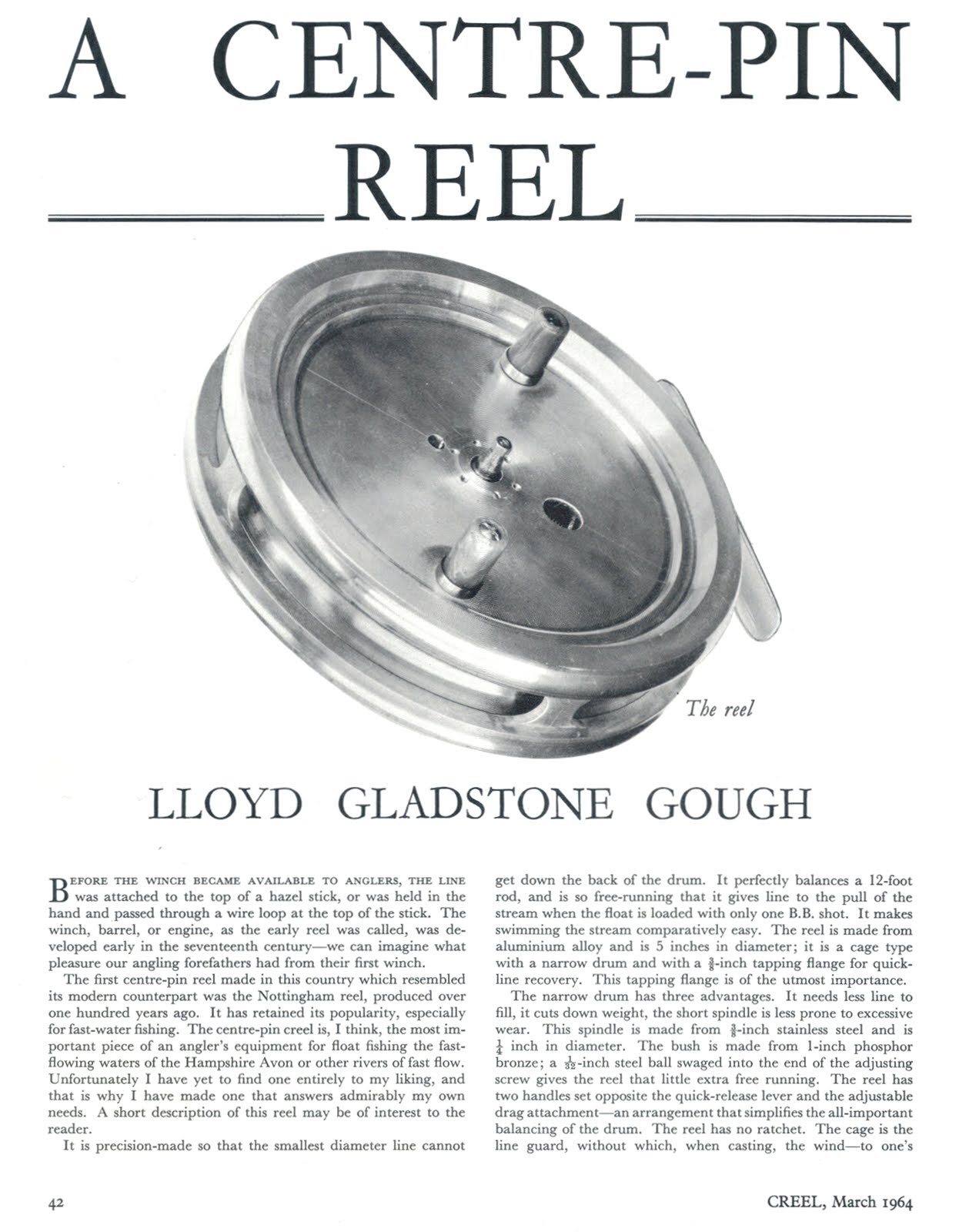

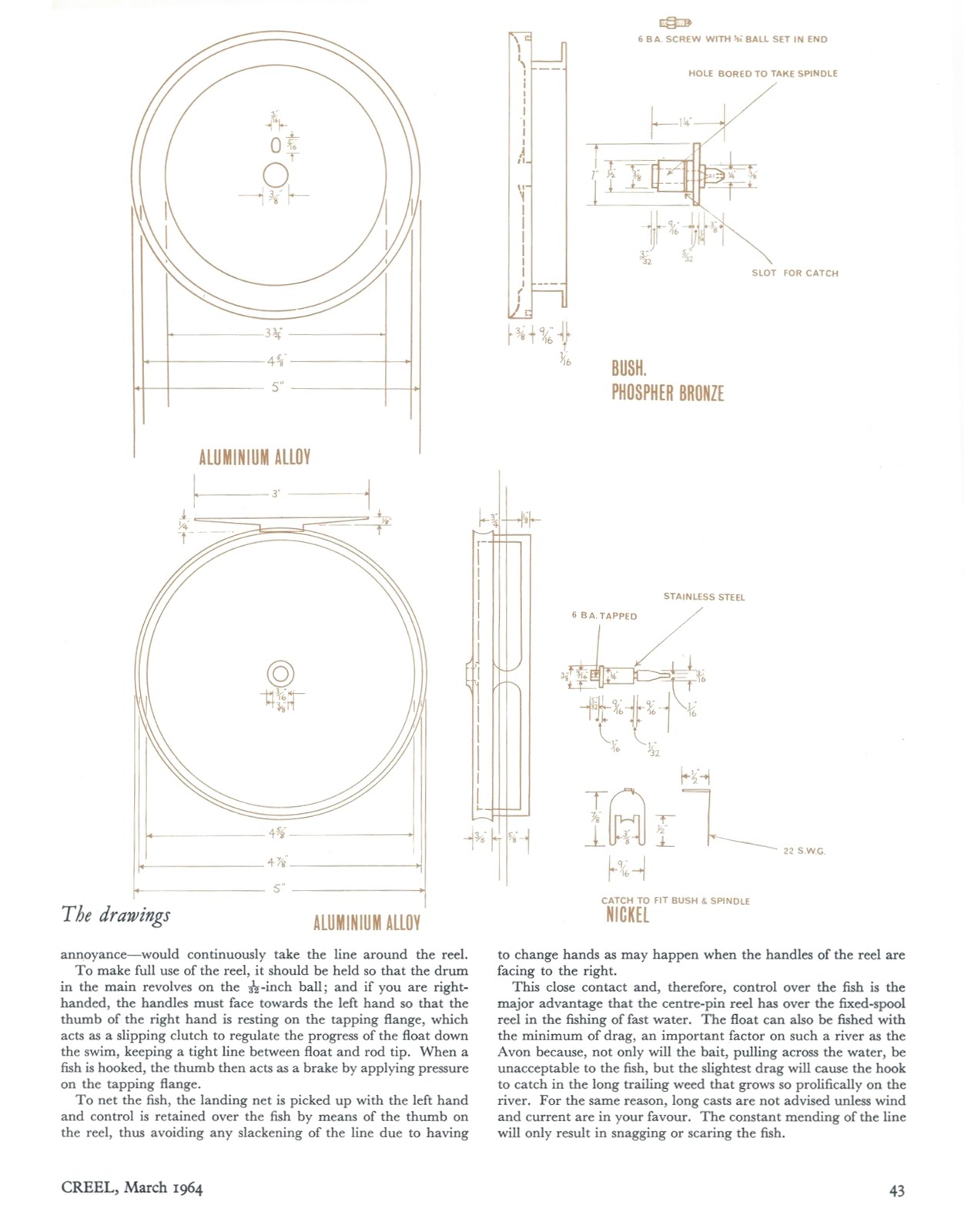

This example shows the result of reverse engineering a Lloyd Gladstone Gough centrepin reel using a set of reference materials which includes dimensioned part drawings. Fits, manufacturing practices, materials and off-the-shelf items are used to complete the 3D design.
